docker-compose部署 简单nsq 集群

主要目的是搭建一个测试环境，同时使用了nodejs 客户端sdk

nsq 简单了解

nsqd：一个负责接收、排队、转发消息到客户端的守护进程 nsqlookupd：管理拓扑信息并提供最终一致性的发现服务的守护进程 nsqadmin：一套Web用户界面，可实时查看集群的统计数据和执行各种各样的管理任务 utilities：常见基础功能、数据流处理工具，如nsq_stat、nsq_tail、nsq_to_file、nsq_to_http、nsq_to_nsq、to_nsq

环境准备

具体参数的意思，参考官方文档

• docker-compose 文件

version: "3"

services:

   ysdp-nsq-admin:

     image: nsqio/nsq:v1.1.0

     command: /nsqadmin -lookupd-http-address ysdp-nsq-nsqlookupd1:4161 -lookupd-http-address ysdp-nsq-nsqlookupd2:4261

     ports:

     - "4171:4171"

   ysdp-nsq-nsqd1:

     image: nsqio/nsq:v1.1.0

     hostname: ysdp-nsq-nsqd1

     command: /nsqd -tcp-address 0.0.0.0:4150 -data-path /usr/local/nsq/bin/data --http-address 0.0.0.0:4151 -lookupd-tcp-address ysdp-nsq-nsqlookupd1:4160 -lookupd-tcp-address ysdp-nsq-nsqlookupd2:4260 -broadcast-address ysdp-nsq-nsqd1

     volumes:

     - "./data1:/usr/local/nsq/bin/data"

     ports:

     - "4150:4150"

     - "4151:4151"

   ysdp-nsq-nsqd2:

     image: nsqio/nsq:v1.1.0

     hostname: ysdp-nsq-nsqd2

     command: /nsqd -tcp-address 0.0.0.0:4250 -data-path /usr/local/nsq/bin/data -http-address 0.0.0.0:4251 -lookupd-tcp-address ysdp-nsq-nsqlookupd1:4160 -lookupd-tcp-address ysdp-nsq-nsqlookupd2:4260 -broadcast-address=ysdp-nsq-nsqd2

     volumes:

     - "./data2:/usr/local/nsq/bin/data"

     ports:

     - "4250:4250"

     - "4251:4251"

   ysdp-nsq-nsqd3:

     image: nsqio/nsq:v1.1.0

     hostname: ysdp-nsq-nsqd3

     command: /nsqd -tcp-address 0.0.0.0:4350 -data-path /usr/local/nsq/bin/data --http-address 0.0.0.0:4351 -lookupd-tcp-address ysdp-nsq-nsqlookupd1:4160 -lookupd-tcp-address ysdp-nsq-nsqlookupd2:4260 -broadcast-address=ysdp-nsq-nsqd3

     volumes:

     - "./data3:/usr/local/nsq/bin/data"

     ports:

     - "4354:4350"

     - "4355:4351"

   ysdp-nsq-nsqlookupd1:

     image: nsqio/nsq:v1.1.0

     command: /nsqlookupd -http-address 0.0.0.0:4161 -tcp-address 0.0.0.0:4160 -broadcast-address ysdp-nsq-nsqlookupd1

     ports:

     - "4160:4160"

     - "4161:4161"

   ysdp-nsq-nsqlookupd2:

     image: nsqio/nsq:v1.1.0

     command: /nsqlookupd -http-address 0.0.0.0:4261 -tcp-address 0.0.0.0:4260 -broadcast-address ysdp-nsq-nsqlookupd2

     ports:

     - "4260:4260"

     - "4261:4261"

启动集群

• 启动

docker-compose up -d

• 效果

使用

• 本地hosts 文件配置 因为基于nsqlookupd 的数据发现需要访问broadcast-address 暴露的地址，所以需要配置，同时都需要加上

127.0.0.1 ysdp-nsq-nsqd1

127.0.0.1 ysdp-nsq-nsqd2

127.0.0.1 ysdp-nsq-nsqd3

• nodejs 项目使用 初始化项目

yarn init -y

添加依赖

yarn add nsqjs

package.json

{

  "name": "api",

  "version": "1.0.0",

  "main": "index.js",

  "license": "MIT",

  "dependencies": {

    "nsqjs": "^0.12.1"

  },

  "scripts": {

    "app":"node consumer"

  }

}

调用代码

const nsq = require('nsqjs')

​

const reader = new nsq.Reader('sample_topic', 'test_channel', {

  lookupdHTTPAddresses: ['127.0.0.1:4161','127.0.0.1:4261']

})

​

reader.connect()

​

reader.on('error',err => {

   console.log(JSON.stringify(err))

})

reader.on('message', msg => {

  console.log('Received message [%s]: %s', msg.id, msg.body.toString())

  msg.finish()

})

测试

• 启动 nodejs 项目

yarn  app

• 发送消息

curl -d "it really tied the room together" http://localhost:4151/pub?topic=sample_topic

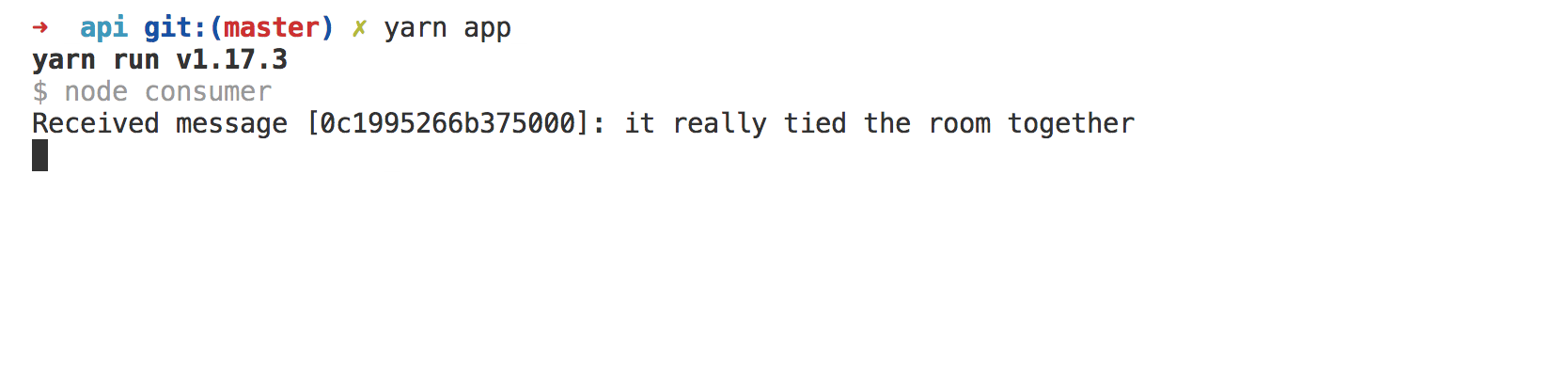

• 效果

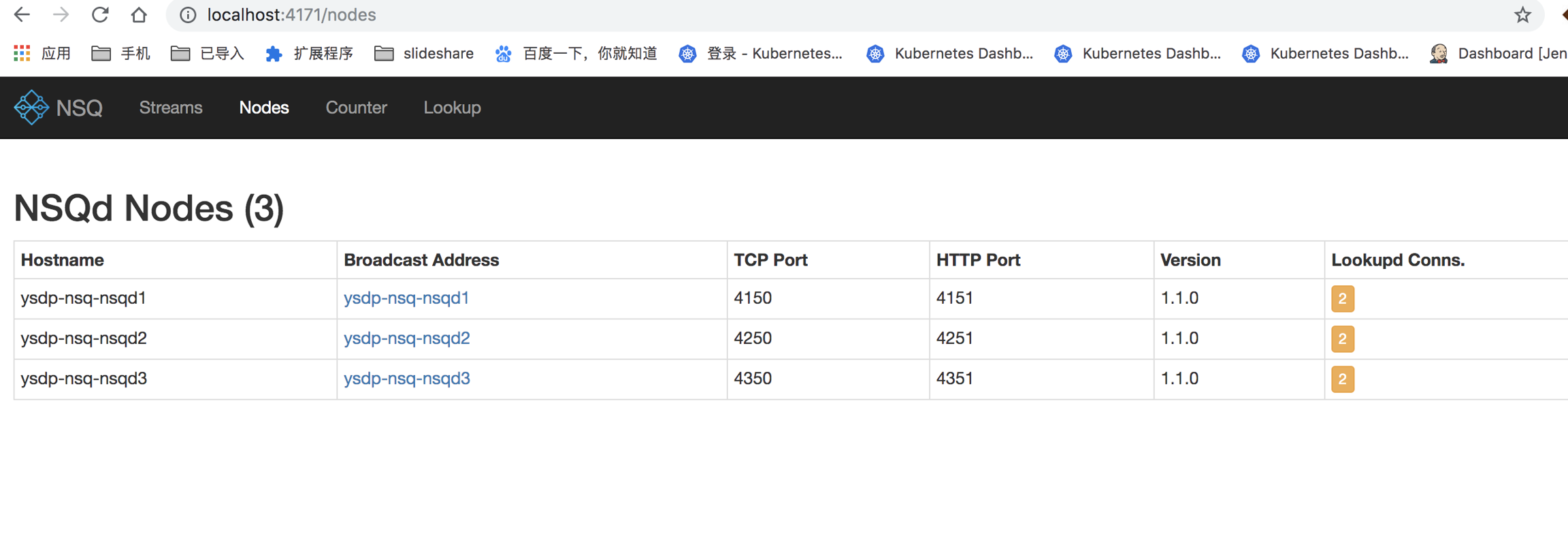

admin 效果

说明

以上是一个简单的测试，以及集群的搭建

参考资料

https://nsq.io/overview/design.html https://github.com/rongfengliang/nsq-cluster-docker-compose
